Offshore Platform

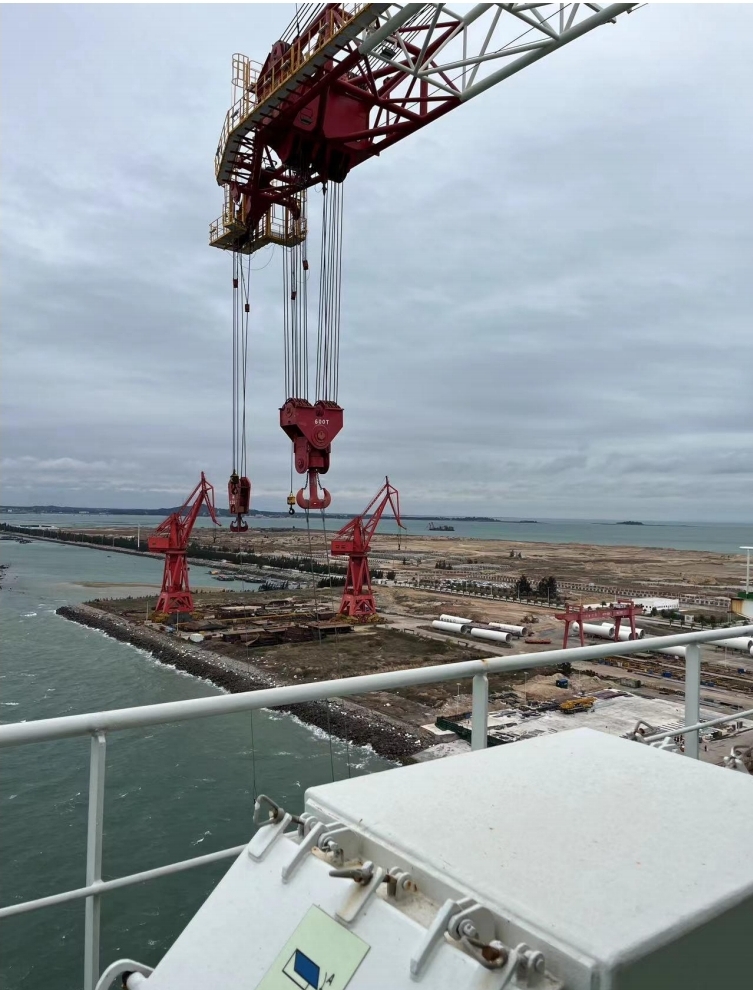

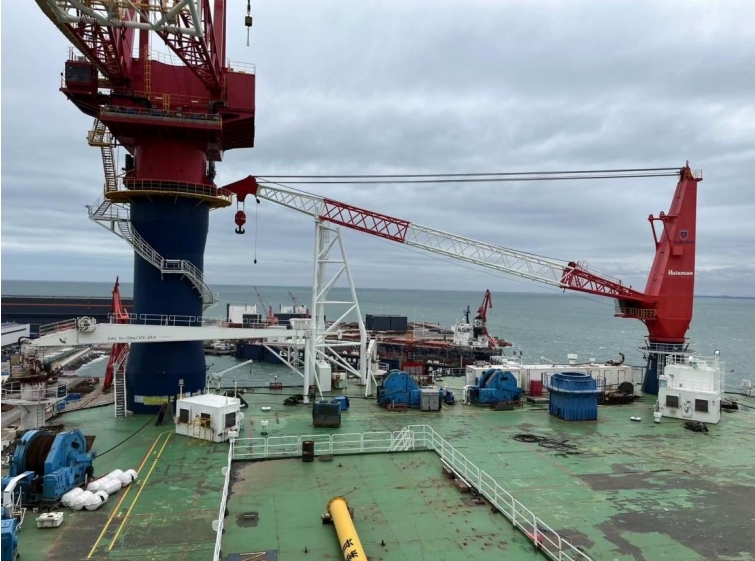

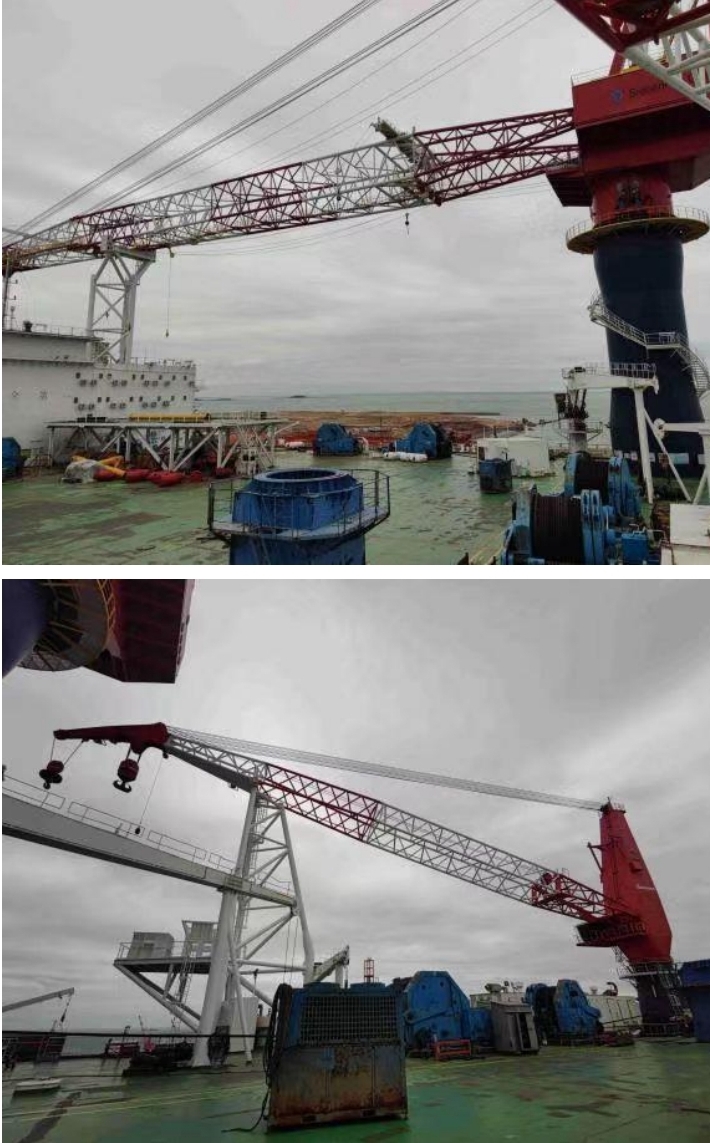

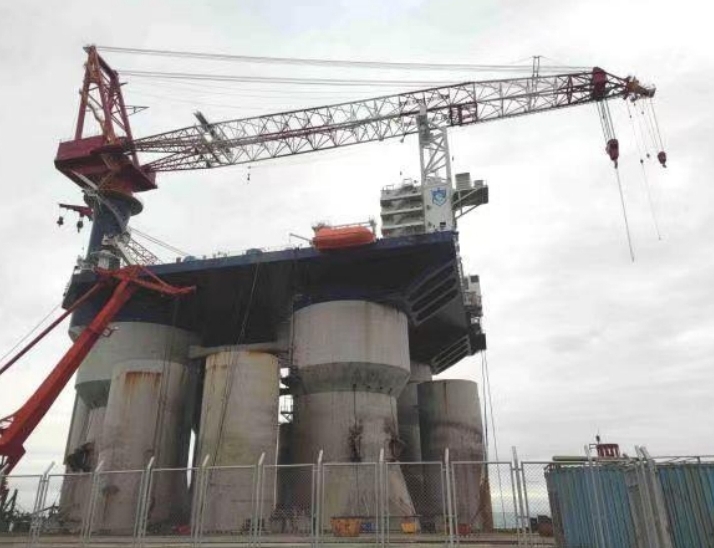

Offshore Wind Installation Platform (None Self Propelled Octagonal Bottom Seated), this platform is designed for install the 10MW Wind Turbines, with the working height of 118m, two cranes onboard (SWL600t+ SWL300t), deck area of 3,800m2, and deck load of 2,000mt, 8 points mooring system, currently on CCS classification, more details as per attachment.


We also confirmed with CCS, this platform can also be modified with a larger crane up to SWL 2,500T.

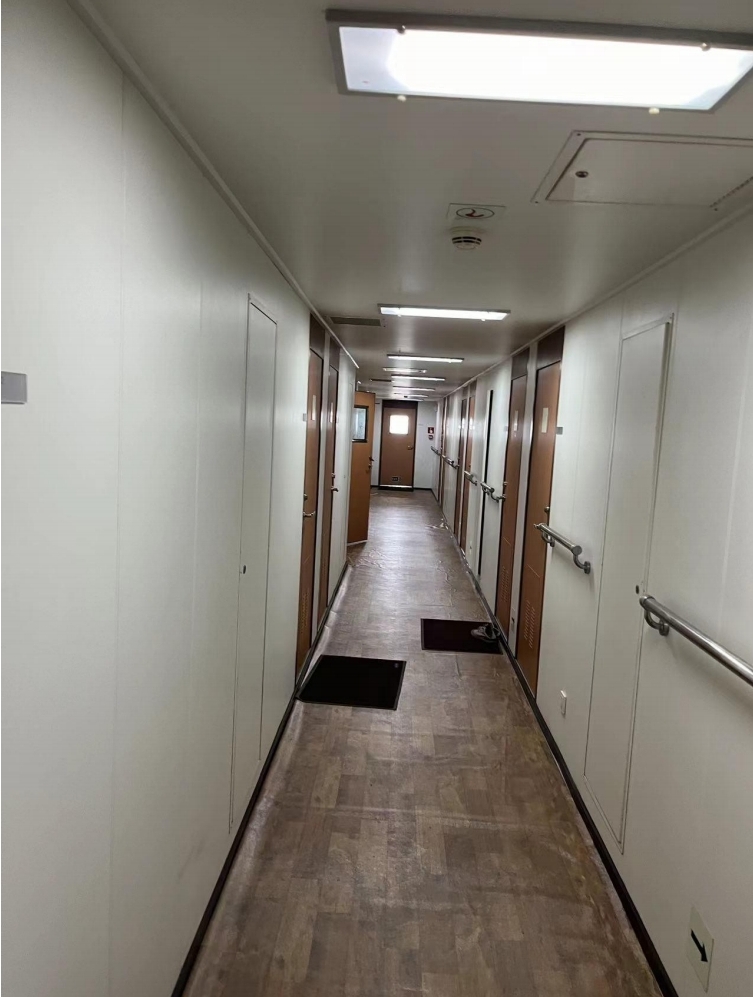

This unit could be converted into a floating FPSO as it was originally designed to hold 170,000 Barrels of Oil, processing 25,000 BPD plus Gas processing or converted into an accommodation work barge, drilling rig or other uses.
